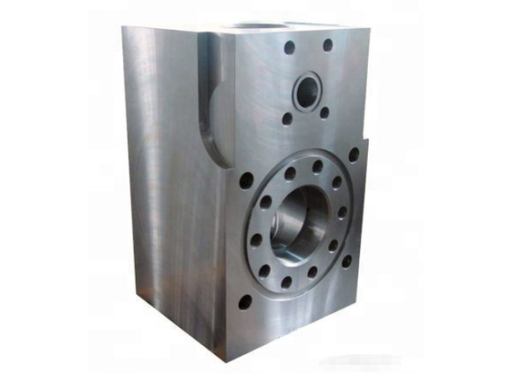

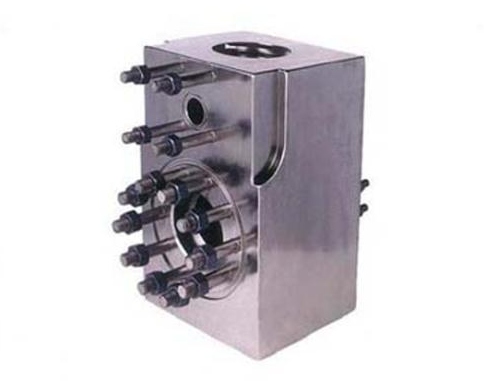

This product is a Southwest Type Fluid End Module for Gardner Denver PZ10 and PZ11 mud pumps, with a rated working pressure of 7500 PSI. As the core assembly component of mud pumps, it is widely used in drilling and solid control equipment. The complete module is fully equipped with a full fluid end assembly, wear plates, various studs, nuts, seals, gaskets, valve covers, valve guides, and clamping parts. With standard specifications and original matching part numbers, it features high compatibility and can be directly applied for complete machine assembly and maintenance replacement.

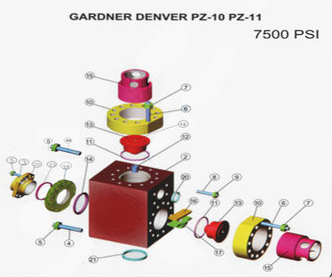

Item No. | OEM Part No. | Mission Part No. | Description | Quantity Per Pump |
|---|---|---|---|---|
- | - | FEMPZ1011WPCA | 3 | |
1 | - | FEMPZ1011WP | MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-8) | 3 |
2 | 201PZL110 | PZ1011LCS | STUD, FRAME & LINER CLAMP LONG | 24 |
3 | 205PZL110 | PZ1011GPFS | STUD, FRAME & LINER CLAMP SHORT | 24 |
4 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 72 |
5 | 204PZL110 | PZ1011TRS | STUD, THREADED RING | 72 |
6 | 50B34 | PZ789TRSN | NUT, THREADED RING STUD | 72 |
7 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
8 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) | 12 |
9 | 200PZL387 | PZ1011FLG | RING, VALVE COVER THREADED | 6 |
10 | 204PZL715 | 07916780 | GASKET, VALVE COVER - RUBBER (Alternative materials available, refer to datasheet) | 6 |
11 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
12 | 200PZL147 | PZ1011VC | COVER, VALVE | 6 |
13 | 200PZL587 | PZ1011CAP | CAP, VALVE COVER LOCK | 6 |
14 | 2011701 | PZ789PL | PLATE, RETAINER | 3 |
15 | 200PZL483 | PZ1011LVG | GUIDE, VALVE SUCTION | 3 |
16 | 655EE065 | PZLVGABOLT | SCREW, VALVE GUIDE TO RETAINER PLATE | 6 |
17 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
18 | 25AL35 | 07916747 | GASKET, DISCHARGE MANIFOLD | 3 |
19 | 25BE41 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
20 | 200PZL455 | PZ1011LC | CLAMP, LINER | 3 |
21 | - | PZ910WPINTL | PLATE, WEAR | 3 |
22 | - | 20100019 | SEAL, WEAR PLATE | 3 |
23 | 200PZL483A | PZ1011LVGA | ASSY, LOWER VALVE GUIDE (INCLUDES ITEMS 11, 14-17) | 3 |
24 | 655EG08N | 700044111 | CAPSCREW, SUCTION MANIFOLD (NOT SHOWN) | 24 |
25 | - | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 |
Applicable Model: Gardner Denver PZ10 / PZ11 Southwest Type Mud Pump
Rated Working Pressure: 7500 PSI
Product Type: Complete fluid end module with full set of installation accessories, seals, fasteners and wear parts
Application Scenarios: Oil drilling, mine drilling, solid control equipment, mud pump maintenance and replacement
Product Advantages: Matched with original OEM part numbers, standard specifications and high compatibility. Complete accessories set without separate procurement. Adopting precision manufacturing technology with excellent wear resistance and sealing performance, it can perfectly replace original parts and reduce procurement costs.
