Do you know about WH-1612 mud pump parts?

Views: 18     Author: Site Editor     Publish Time: 2023-10-31      Origin: Site

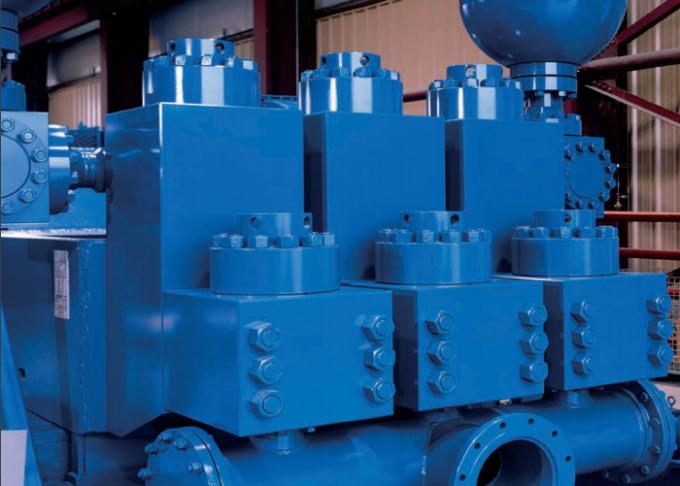

WH-1612 mud pump is a commonly used equipment in oil fields, oil drilling, coal mining and other fields. It is used to transport fluids such as mud and water. Mud pumps typically consist of various components that work together to ensure proper pump operation. The following is a specific parts list for the WH-1612 mud pump:


  1. Pump Body: Usually made of cast iron or steel, it is the outer casing of the mud pump that houses the internal components.


  2. Piston: Used to compress and push mud or liquid.


  3. Valves: Including suction and discharge valves, these control the direction of fluid flow, ensuring the pump operates continuously.


  4. Seals: Prevent leakage of mud or liquid, typically located between the pump body and the piston.


  5. Crankshaft: Converts rotary motion into reciprocating motion, driving the piston.


  6. Bearings: Support and reduce friction between moving parts.


  7. Connecting Rod: Connects the crankshaft and piston, converting rotary motion into reciprocating motion.


  8. Motor or Engine: Provides power to drive the pump.



WH1612 mud pump liner, WH-2214 mud pump zirconia liner, WH2215 mud pump ceramic liner, WH1312 mud pump fluid end parts


ITEM QTY PART NO. DESCRIPTION
1 3 D105364 DISCHARGE MODULE
2 30 ES222 STUD, 1.375 6NC V TPR LCK
3 3 D105365 SUCTION MODULE
4 18 ES223 STUD 1.750 8UN 21.00 V TPR LCK
5 6 A105409 PIN, .875 DIA X 2.75
6 6 C164435 FUNGE-VALVE COVER
7 6 B164436 LOCK-VALVE COVER
8 6 C164704 VALVE COVER
9 6 A164705 SEAL-VALVE COVER
10 6 C164718 VALVE GUIDE
11 6 A167708 BUSHING-VALVE GUIDE
12 12 EC220 VALVE GUIDE SCREW
13 72 108-0959 VALVE COVER STUD
14 18 EC199 LINER RETAINER SOCKET HEAD CAP SCREW
15 3 D167729 LINER LOCK FLANGE
16 3 C105368 LINER LOCK
17 3 108-0964 LINER WEAR PLATE
18 6 A164707 WEARPLATE AND MODULE GASKET
19 2 B105389 DISCHARGE CONNECTOR
20 2 B105390 DISCHARGE ADAPTER
21 4 B105388 BACK-UP RING
22 2 108-0531 DISCHARGE SPACER FLANGE
23 2 108-0674 DISCHARGE SPACER FLANGE SEAL
24 4 108-0861 DISCHARGE CONNECTOR / ADAPTER PACKING
25 2 108-0860 DISCHARGE CONNECTOR / ADAPTER PACKING
26 2 EG108 RING GASKET
27 16 108-0530 STUD, 1.500 6NC 7.500 V TPR LCK
28 16 108-1228 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW
29 16 400-1871 DISCHARGE CONNECTOR CAP SCREW
30 24 002-7583 BOLT HX ,875 9NC 3.00 G8
31 1 D105036 SUCTION MANIFOLD, FRONT OR SIDE INLET
32 3 108-0234 SUCTION MANIFOLD GASKET
33 3 EN101 PISTON ROD, NUT
34 30 EN118 1.375 6NC HVY HX NUT
35 88 002-5784 1.500 6NC HVY HX NUT
36 18 EN111 1.750 8UN HVY HX NUT
37 16 080-1181 ,500 LOCK WASHER
38 24 002-1543 .875 LOCK WASHER
39 6 EV116 VALVE SPRING
40 REF EV142 VALVE INSERT
41 6 EV190 VALVE SEAT
42 6 EV178 VALVE COMPLETE
43 3 SEE CHART LINER
44 3 SEE CHART PISTON ASSEMBLIES
45 3 SEE CHART PISTON RUBBER KITS
46 3 SEE CHART LINER GASKETS
47 3 C167638 BAFFLE STRUCTURE
48 9 080-8476 BOLT HEX 3/8-16 NC x 1-1/4 GR. 8
49 9 EN125 NUT HEX 3/8-16 NC GR. 8
